Process Control Systems | Optional Add-Ons

Category: Process Control

Amatrol’s offers several add-ons for the process control learning systems. These add-ons allow you to teach and demonstrate common industrial components and applications.

Amatrol T5552F Level and Flow Process Control Troubleshooting Learning System

Level & Flow Process Control (T5552)

Amatrol T5553 Temperature Process Control Learning System

Temperature Process Control (T5553)

Amatrol Analytical Process Control Learning System (T5554)

Analytical Process Control (T5554)

PID Controller Module | T5552-C1-A

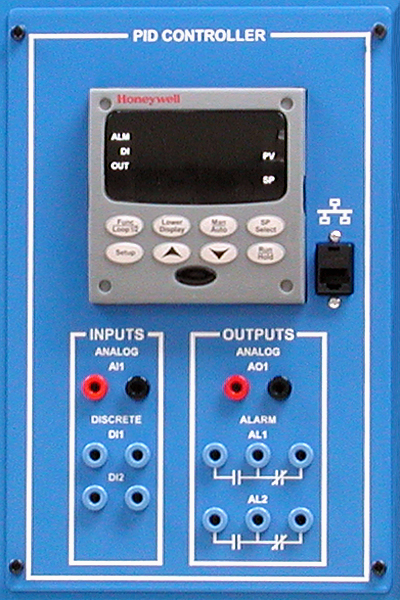

The T5552-C1-A PID Controller Module adds to the T5552 Process Control Learning System to provide microprocessor-based PID control of process control systems. The T5552-C1 consists of a powerful Honeywell PID controller that is mounted and wired to a panel that attaches to the T5552 control panel. The PID Controller Module includes (2) 4-20 mA analog inputs, (1) 4-20 mA analog outputs, (1) discrete alarm output, and (2) discrete inputs which can be programmed to control processes using any one of three control methods: discrete I/O control, closed loop analog control, or open loop analog control. All I/O connections are made via plug-in jacks which are compatible with the connections on the T5552 System.

Pitot Tube Flow Transducer T5552-F1A

Pitot Tube Flow Transducer Training | T5552-F1A

The T5552-F1A Pitot Tube Flow Transducer training adds to the T5552-F1 Smart Transmitter Module to provide measurement of flow rate in the T5552 Process Control Learning System. The transducer has pre-mounted pipe unions, making it easy to install in the T5552 process piping and later interchange with other flow transducers. The feedback signal is a differential pressure measurement created by two pressure taps located on the transducer. These pressure taps connect to the smart transmitter with quick connect hoses.

Venturi Flow Transducer Training | T5552-F1B

The T5552-F1B Venturi Flow Transducer adds to the T5552-F1 Smart Transmitter Module to provide measurement of flow rate training in the T5552 Process Control Learning System. The Venturi Flow Transducer training device has pre-mounted pipe unions, making it easy to install in the T5552 process piping and later interchange with other flow transducers. The feedback signal is a differential pressure measurement created by two pressure taps located on the transducer. These pressure taps connect to the smart transmitter with quick connect hoses.

Venturi Flow Transducer T5552-F1B

Flow Rate Measurement Training | T5552-F1C

The T5552-F1C Orifice Plate Flow Transducer adds to the T5552-F1 Smart Transmitter Module to provide measurement of flow rate in the T5552 Process Control Learning System. The transducer has pre-mounted pipe unions, making it easy to install in the T5552 process piping and later interchange with other flow transducers. The feedback signal is a differential pressure measurement created by two pressure taps located on either side of the orifice plate. These pressure taps connect to the smart transmitter with quick connect hoses.

PID Controller Module Single Loop Training | T5553-C1-A

The T5553-C1-A PID Controller Module Single Loop training adds to the T5553 Process Control Learning System to provide microprocessor-based PID control of process control systems. The T5553-C1-A consists of a powerful Honeywell PID controller that is mounted and wired to a panel that attaches to the T5553 control panel. It also supports advanced control methods such as ratio, feed forward, and cascade control.

PID Controller Module Dual Loop Training | T5553-C2-A

The T5553-C2-A PID Controller Module Dual Loop training adds to the T5553 Process Control Learning System to provide microprocessor-based PID control of process control systems. The T5553-C2-A consists of a powerful Honeywell PID controller that is mounted and wired to a panel that attaches to the T5553 control panel.

The PID Controller Module Dual Loop training includes set point programming, dual-loop control plus internal cascade, universal analog inputs, 4-20 mA analog outputs, alarm relay outputs, and discrete inputs which can be programmed to control processes using either closed loop analog control or open loop analog control. All I/O connections are made with plug jacks and connectors which are compatible with the connections on the T5553 System. Also supports advanced control methods such as ratio, feed forward, and cascade control.

PID Controller Module Single Loop Training | T5554-C1-A

The T5554-C1-A PID Controller Module – Single Loop adds to the T5554 Process Control Learning System to provide microprocessor-based PID control of process control systems. The T5554-C1-A consists of a powerful Honeywell PID controller that is mounted and wired to a panel that attaches to the T5554 control panel. It also supports advanced control methods such as ratio, feed forward, and cascade control.

PID Controller Module Dual Loop Training | T5554-C2-A

The T5554-C2-A PID Controller Module – Dual Loop adds to the T5554 Process Control Learning System to provide microprocessor-based PID control of process control systems. The T5554-C2-A consists of a powerful Honeywell PID controller that is mounted and wired to a panel that attaches to the T5554 control panel. The controller includes set point programming, dual-loop control plus internal cascade, universal analog inputs, 4-20 mA analog outputs, alarm relay outputs, and discrete inputs which can be programmed to control processes using either closed loop analog control or open loop analog control. All I/O connections are made with plug jacks and connectors which are compatible with the connections on the T5554 System. The PID Controller Module – Dual Loop also supports advanced control methods such as ratio, feed forward, and cascade control.
