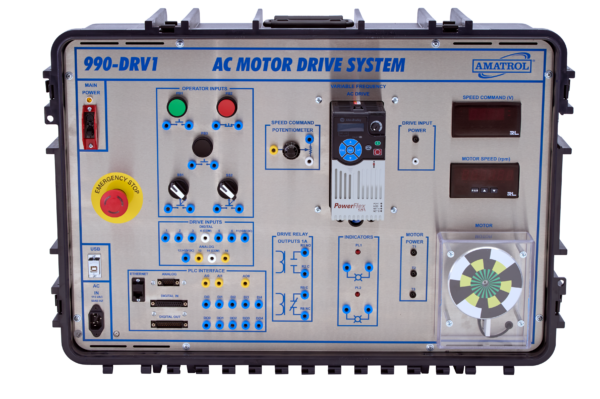

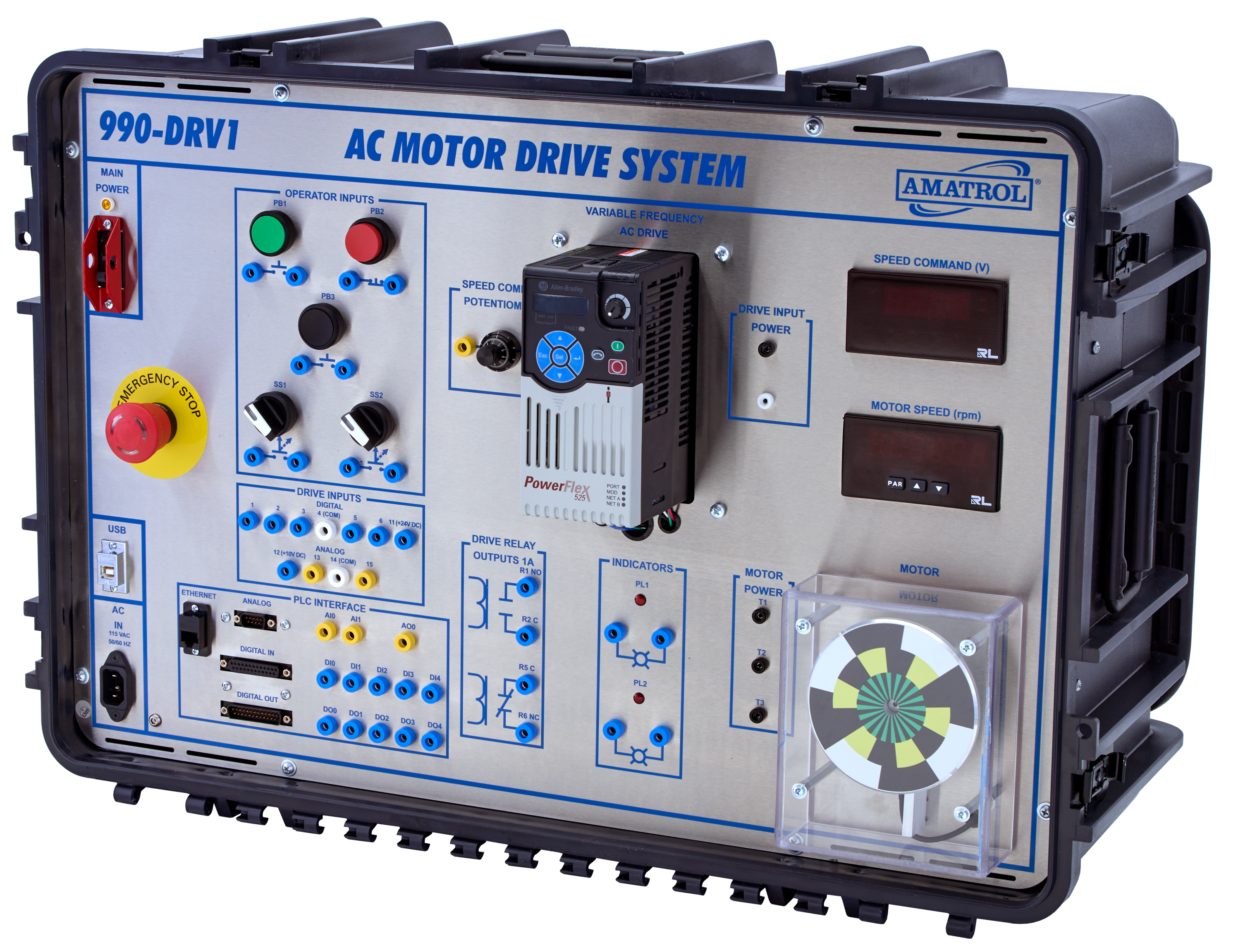

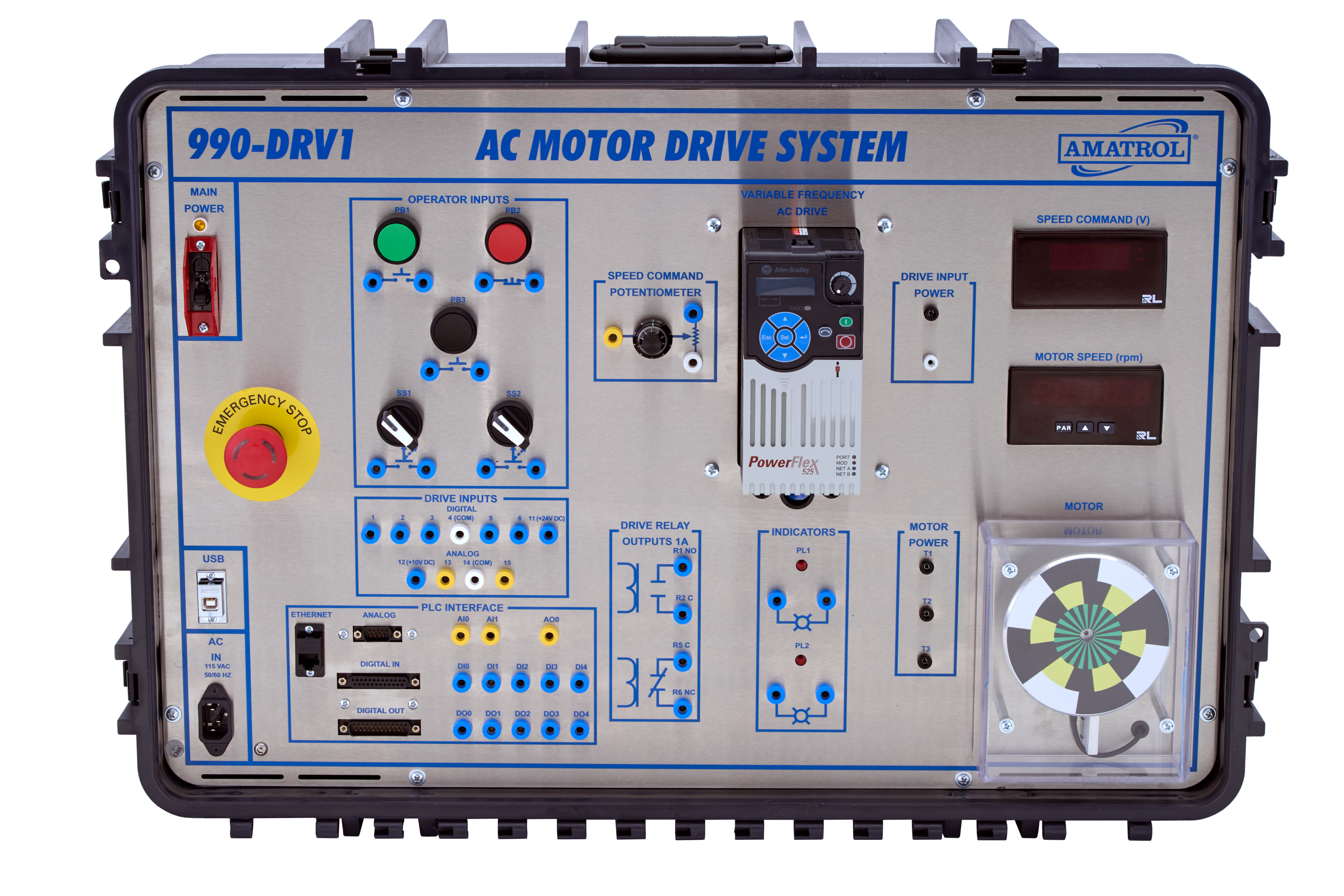

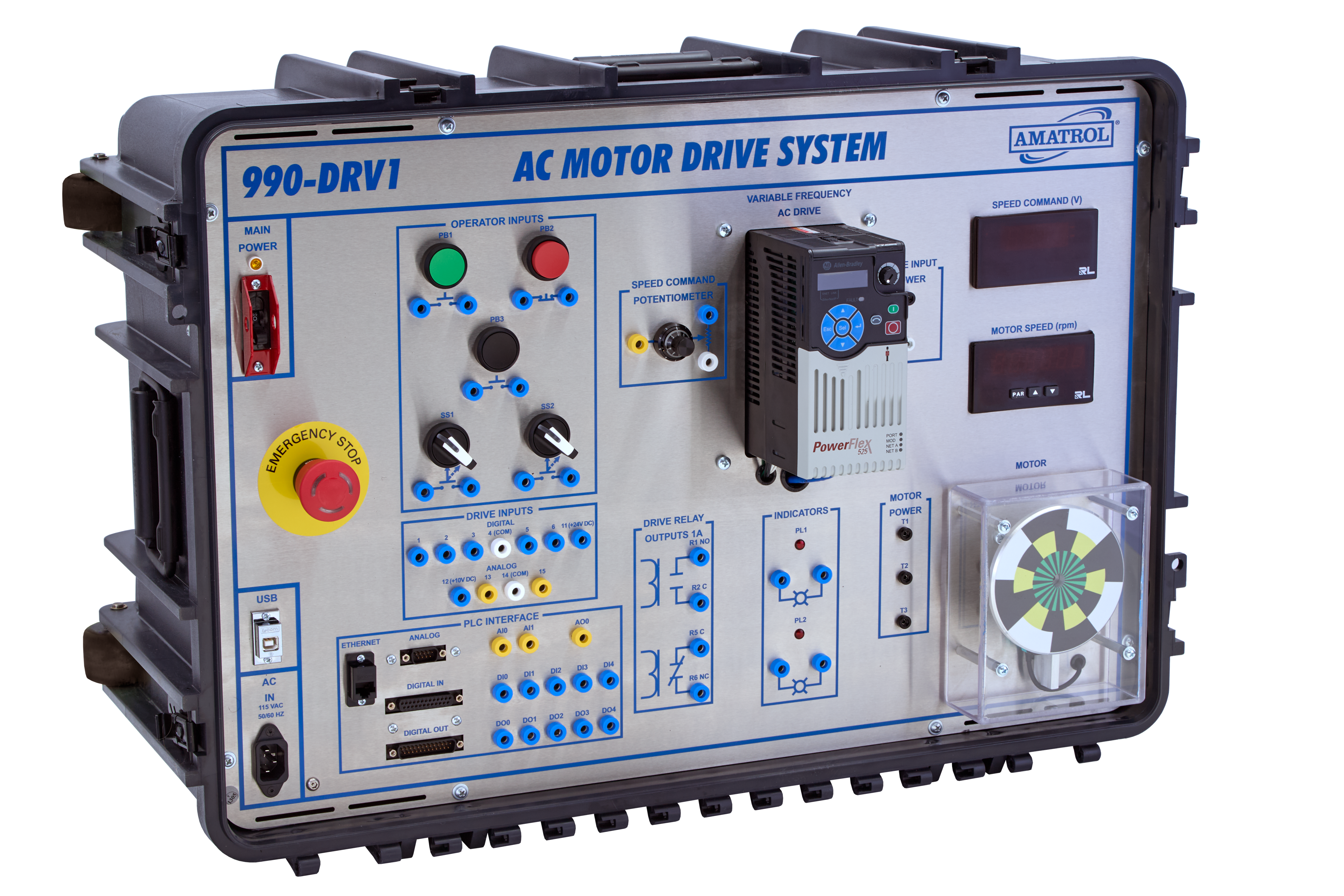

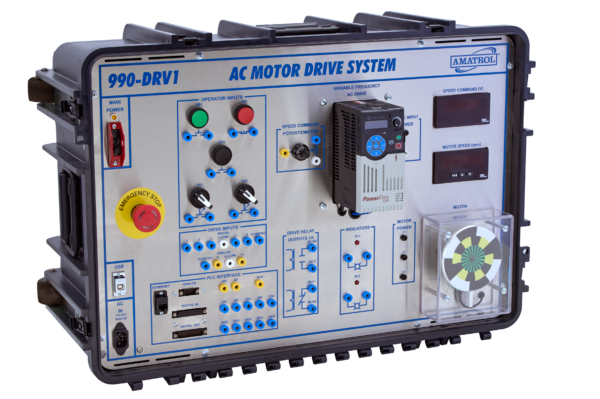

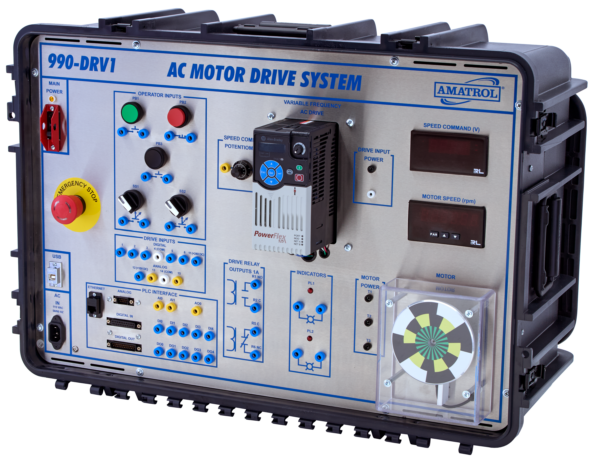

990-DRV1F AC Motor Drive System with FaultPro Troubleshooting Software
990-DRV1F AC Motor Drive System with FaultPro Troubleshooting Software
990-DRV1
990-DRV1
990-DRV1 eLearning Curriculum Sample Showing a Multiple Choice Question About a Motor and Rated Speed
990-DRV1 eLearning Curriculum Sample Showing Reflected Wave Voltage
990-DRV1 eLearning Curriculum Sample Showing a General-Purpose Drive
AC Motor Drive Student Reference Guide

A Student Reference Guide sourced from the system’s interactive eLearning includes the entire series’ technical content from the learning objectives.

Requires:

Utilities: Electricity (120 VAC/60 Hz/1 phase)

Spanish eLearning Available

Portable AC Variable Frequency Drives Troubleshooting Skills | AC Motor Training

Learning System: 990-DRV1F

Amatrol’s Portable AC Variable Frequency Drives Troubleshooting Learning System (990-DRV1F) teaches the fundamentals of configuring and operating an AC variable frequency drive. The AC motor drive troubleshooting system includes industry-standard components, such as an Allen-Bradley PowerFlex 4 variable frequency AC drive and a 3-phase AC motor, in a convenient, portable case that can be used virtually anywhere.

The system also features FaultPro, Amatrol’s exclusive electronic fault insertion software. FaultPro allows users to learn motor drive troubleshooting skills, such as drive input, motor input, and drive relay troubleshooting. FaultPro allows users to troubleshoot realistic situations they will encounter on the job in industries like packaging, textiles, and paper where rapid motor acceleration and deceleration are required.

Learning Topics

  • Variable Frequency AC Drives
  • Two- and Three-Wire Control
  • Jogging Control
  • Speed Control
  • Torque Control
  • Ramping
  • Acceleration Methods
  • Braking
  • Fault Detection
  • Troubleshooting

Real-World AC Motor Drive Troubleshooting with FaultPro

The variable frequency drives training system features FaultPro, Amatrol’s exclusive electronic fault insertion system. FaultPro allows users to insert more than 20 faults into the system for realistic troubleshooting of situations they will encounter on the job. FaultPro’s computer-based faults automatically track progress, enabling learners to gain troubleshooting skills in a self-paced environment that ensures that faults are inserted safely, protecting both learners and equipment.

Practice Hands-On Skills Wherever You Are

The variable frequency drives training system allows learners to practice hands-on skills with industry-standard components, like an Allen-Bradley PowerFlex 4 variable frequency AC drive and a 3-phase AC motor. Learners will gain real-world experience that will prepare them for work opportunities. The system also includes: onboard analog and discrete input devices that enable learners to operate the drive in many different program applications; a digital tachometer to monitor output; a digital voltmeter to monitor analog input into the motor; and a lockout/tagout kit to learn vital safety skills when working with AC motors.

Practice Hands-On Skills Wherever You Are

The variable frequency drives training system allows learners to practice hands-on skills with industry-standard components, like an Allen-Bradley PowerFlex 4 variable frequency AC drive and a 3-phase AC motor. Learners will gain real-world experience that will prepare them for work opportunities. The system also includes: onboard analog and discrete input devices that enable learners to operate the drive in many different program applications; a digital tachometer to monitor output; a digital voltmeter to monitor analog input into the motor; and a lockout/tagout kit to learn vital safety skills when working with AC motors.

AC Motor Drive Troubleshooting Curriculum | Engaging Interactive Multimedia

Amatrol’s curriculum features a highly-interactive, multimedia format that includes stunning 3D graphics and videos, voiceovers of all text, and interactive quizzes and exercises designed to appeal to learners with different learning styles. The variable frequency drives training curriculum teaches learners about the operation, installation, and performance analysis of AC motors. Learners will also gain experience with relevant hands-on skills, such as operating a variable frequency AC drive to provide low speed boost. Other major topics include jogging and torque control, ramping commands, DC injection braking, acceleration methods, and troubleshooting various system faults.

Free Learning Management System (LMS)

Amatrol eLearning is easy-to-use for both students and instructors. Its web-based interface is simple to navigate and available on any WebGL-compatible Internet browser. Instructors love Amatrol eLearning for its simple, yet sophisticated Learning Management System (LMS). The LMS allows instructors to create custom courses, monitor student participation, track course progress, assess knowledge levels prior to a course, and test knowledge levels after completion. Learners appreciate the fact that they can start and stop as needed, moving through each Amatrol course at their own pace. If a self-review reveals that they didn’t understand a particular topic as well as they thought they did, they can revisit it before moving on.
